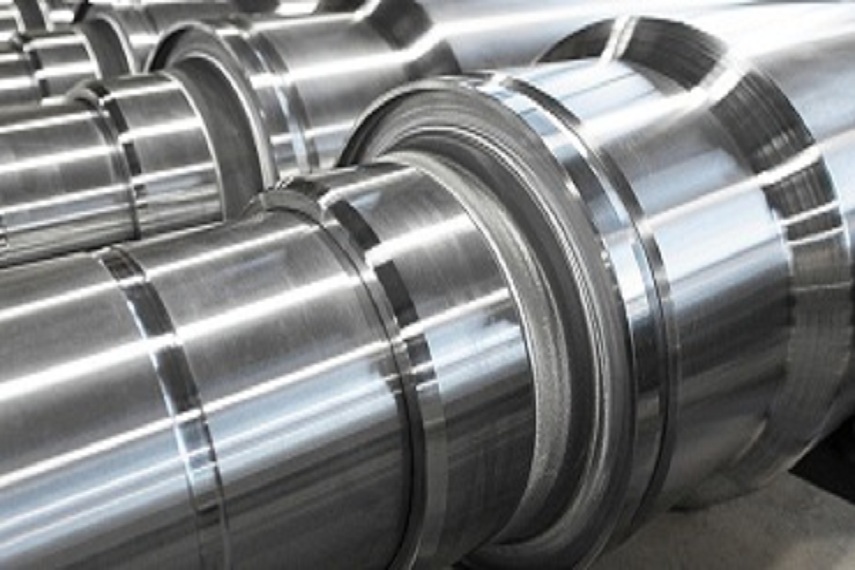

DEFINITE CHILLED BARRELS

We Also Produce Chill Rolls Barrels By Centrifugal Casting, In This Casting Rolls Remain Free From Pinholes And Cracks. The Steel Shafts Are Fitted In The Barrels With Shrink Fitting Technology Along With M.S Lock Nuts On Both Sides Of The Barrels. This Method Annihilates The Chances Of Loosening The Shafts.


CHEMICAL COMPOSITION


Hardness C (%) Mn (%) Si (%) P (%) S (%) Ni (%) Cr (%) Mo (%)
65-70 3.00/3.20 0.60/0.80 1.00/1.60 0.11 Max. 0.11 Max. 1.00/1.30 0.80/1.20 0.20/0.30
70-75 3.00/3.20 0.60/0.90 1.00/1.60 0.11 Max. 0.11 Max. 1.30/1.70 1.00/1.60 0.30/0.40
75-80 3.20/3.50 0.60/0.90 0.70/1.10 0.10 Max. 0.05 Max. 1.70/2.00 1.60/1.90 0.40/0.50
